King Shock Rebuild Instructions

Note: The following King Off-Road Racing Shocks rebuild instructions are provided courtesy of Filthy Motorsports and published with their approval.

While these instructions are written specifically for King Shocks, the steps will be very similar for all other brands of off-road racing shocks including Fox, Bilstein, Sway-A-Way, and F-O-A.

For a quick list of parts and tools needed for service, see our Shock Rebuild Tools List page.

Need help with rebuilding your shocks? Check out the new comments section below!

King Shocks ad for Filthy Motorsports

Video: King Shock Rebuild by Shock Service, LLC

To learn more about Shock Service, LLC follow them at IG@Shock ServiceLLC and FB/ShockService

*Open video in YouTube and view description for section links and details.*

Recommended Tools for King Shock Rebuilds

To perform a proper shock rebuild you will need some basic hand tools including wrenches and sockets, however, some less common tools like spanner wrenches and snap ring pliers will also be required. Below you will find some Amazon links to the exact same tools we currently use for service work. Yes, we do receive a small commission on any purchases from Amazon, however, this does not affect your purchase price.

For a complete list of tools needed for shock servicing, see our Shock Rebuild Tools List page.

How to Rebuild King Off-Road Racing Shocks

One of the best features of high performance off-road racing shocks is that they can be easily serviced, repaired, rebuilt, and revalved. While this may seem like a complicated process, you have to remember that they are specifically designed to be easy to work on so that race teams can make repairs quickly, even when they are out in the middle of the desert. If this is your first time rebuilding a shock, take your time and follow these steps carefully. After a few times, you'll be able to complete the process in about 30 minutes.

Photo of King Shocks seal kits and valvig shims in bag

Parts used to service King Shocks:
Shock Seal Rebuild Kit
Valving Shim Stacks
King Shock Oil
Bearings and Spacers

Photo of shock servicing tools: hammer, spanner wrench, pick, allen wrenches, bucket, and hockey puck
Required Tools Recommended Tools

For a complete list of tools needed for shock servicing, see our
High Performance Shock Servicing Tools List

As an Amazon Associate, we earn a small commission on purchases which does not affect your pricing.
Products will not appear if your browser has ad blocker turned on.

Photo of an allen wrench inserted in the set screw of the shock wiper cap

Step 1: Clean The Shock - Clean the shock completely using paper towels or a shop rag to remove any and all dust and dirt. Do not bleed the nitrogen pressure from the shock just yet.

Step 2: Loosen Set Screw - With the shock shaft fully extended, use an allen wrench to loosen the set screw in the lower wiper cap. Make sure the allen wrench is a good fit so as not to strip the screw. Unscrew it just a few turns.

Photo of spanner wrench inserted into shock wiper cap

Step 3: Loosen the Wiper Cap - Set the spanner wrench securely into the two indented holes on the wiper cap and using a medium amount of force turn the wiper cap counter-clockwise. A small tap with a dead blow hammer usually does the trick. Do not remove the wiper cap in this step, only loosen a few turns. Nothing in this rebuild process should require more than a small to medium amount of force and everything should come apart smoothly.

Photo of schrader valve cap removed from schrader valve

Step 4: Bleed the Nitrogen Pressure - Bleed the pressure from the reservoir or shock body on an emulsion shock through the Schrader valve using a small screwdriver or allen wrench. If you have a valve core tool, we recommend removing the valve core from the Schrader valve.

A photo looking down inside a King shock cylinder showing the seal cap assembly

Step 5: Unscrew the Wiper Cap - Finish unscrewing the wiper cap and slide it up to the end of the shock shaft.

Step 6: Lower the Seal Cap - Press down firmly on the internal seal cap to push it down below the snap ring.

A photo looking down inside the open end of a King shock cylinder with shaft still installed showing the retaining ring

Step 7: Remove the Retaining Ring - With a small screwdriver or dentist pick, remove the retaining ring and set it aside.

A photo of a King shock shaft assembly removed from the shock cylinder held by a hand wearing a black glove

Step 8: Remove the Shock Shaft - Carefully pull on the shock shaft to remove it from the shock body. Sometimes the shaft comes out easily and other times you may be fighting a tight vacuum so be careful, take your time, and expect to make a mess.

A photo of a King shock cylinder and shaft assembly resting on a bucket filled with shock oil as they drain

Step 9: Drain the Oil - Drain the oil from the shock into a clean container. For bypass shocks make sure the bypass valves are open so the oil can drain from the bypass tubes. For remote reservoir shocks lift the reservoir up to drain the oil from inside the reservoir and reservoir hose. For piggyback reservoir shocks lean the shock body such that the oil can drain from the piggyback reservoir into the shock cylinder and then turn the shock over and let the oil drain out. Inspect the oil for unusual debris or metal shavings and inspect the shock shaft and cylinder walls for scratches and damage.

A photo of a King shock shaft showing the piston, valving shims, and shaft nut

Step 10: Remove the Piston Retaining Nut - Secure the lower rod end (bearing side) of the shaft assembly in a vice and protect it with a towel or rubber pad, then remove the piston retaining nut. The wear band on the piston only needs to be replaced if excessive wear is visible. Never clamp the shock shaft in a vice without proper soft jaws, shock shaft clamps, or a shop rag.

Photo of a King shock shaft disassembled with valving shims layed out

Step 11: Remove the Piston and Shims - Carefully remove the shock piston, shims, and spacers and lay them out in order. If you are revalving your shocks, then this is the time to replace the existing shims with the new ones. Remember that compression shims go on the bottom and rebound shims go on the top, towards the nut. For help choosing new shims, see Shock Tuning. If you are not replacing any seals, then the seal cap and wiper cap should stay on the shock shaft.

A photo of a King shocks seal head, wiper cap and seal retainer

Step 12: Replace Seal Cap Seals - If you are performing a shock rebuild, remove the seal cap, spacer, and wiper cap from the shock shaft. Remove the existing seals and o-ring carefully using a small screwdriver and/or small pliers. The new seals are a tight fit but will push in by hand without needing much force. Take your time to make sure they are fully seated correctly.

A photo of a bottle of loctite and a wrench next to the shaft assembly piston nut

Step 13: Reassemble the Shock Shaft - Slide all of the shock shaft components back onto the shock shaft in the reverse order in which they were removed. Apply a small drop of Loctite (thread locker) to the shaft threads before tightening the piston retaining nut snugly. Set the shock shaft assembly aside for now.

A photo of a wrench on the King bypass shock bypass tube end cap

Step 14: Remove Bypass Tube Valves - Remove the bypass tube valves by unscrewing the larger of the two nuts. These nuts may be a little tight and may require some force so use caution.

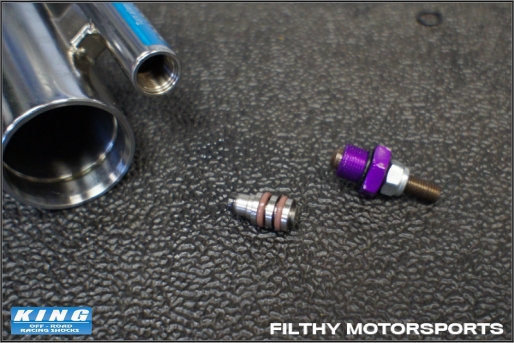

A photo of King bypass shock tube end caps and bypass valves removed from the shock

Step 15: Replace Bypass Valve O-Rings - Using small pliers, remove the bypass valve from inside the bypass tube. Replace the o-rings and then reinstall the valve and nut. Make sure that the valves remain open to allow air to bleed through them during the oil filling process coming up soon.

A photo of the reservoir internal floating piston removed from the reservoir with o-ring and wear band

Step 16: Reservoir Rebuild - Press down/in firmly on the reservoir end cap to expose the retaining ring and remove it using a small screwdriver or pick. Remove the end cap by pulling on the Schrader valve, preferably using a tire inflation extension or valve stem puller. The other reservoir end cap can be removed in a similar fashion. Replace the o-rings and reassemble.

A photo of and air hose next to the reservoir end cap with schrader valve

Step 17: Set the Reservoir IFP - Charge the reservoir with a small amount of pressure to push the internal floating piston to the bottom of the reservoir cylinder. Then, release the pressure from the reservoir so that it is empty. Another option is to remove the end cap and manually push the IFP to the bottom of the reservoir cylinder.

A photo looking down inside the King shock cylinder filled with oil

Step 18: Fill the Shock Cylinder with Oil - While holding the shock cylinder upright, pour the shock oil into the cylinder until it reaches a point about one inch under the snap ring groove.

For Emulsion (Non-Reservoir) Shocks - Use these oil volumes instead.

2.0 x 6" 195 cc
2.5 x 6" 400 cc
2.0 x 8" 250 cc
2.5 x 8" 510 cc
2.0 x 10" 320 cc
2.5 x 10" 640 cc
2.0 x 12" 400 cc
2.5 x 12" 800 cc
2.0 x 14" 450 cc
2.5 x 14" 900 cc
2.0 x 16" 500 cc
2.5 x 8" 1000 cc

A photo of a hockey puck sitting flat on top of the King shock cylinder covering the opening

Step 19: Cap and Flip the Shock Cylinder - Using your hand or any clean flat block (a hockey puck works well), cover the open end of the cylinder and turn it upside down and back a few times to release any trapped air bubbles. For remote reservoir shocks let the reservoir hand straight down. Add shock oil as needed to bring the oil level back to around one inch below the snap ring groove.

A photo looking down inside the King shock cylinder with shaft inserted and oil covering the piston

Step 20: Slowly Insert the Shock Shaft - Carefully place the shock shaft assembly into the shock cylinder until the entire piston is submerged. Move the shaft up and down slightly and let any remaining air bubbles work their way out. You may also want to tap the top of the shat with a mallet as this will allow any air trapped in the piston and under the valving shims to escape.

A photo looking down inside the King shock cylinder showing the retaining ring that holds the seal cap

Step 21: Set the Seal Cap - Slide the seal cap down to the top of the cylinder and settle it down so that it is sitting on top of the shock oil. Ideally, a small amount of shock oil will seep out over the cylinder wall. Then, push down on the seal cap with moderate force to move it down to just below the retaining ring groove. Try and do this in one continuous push because this is how oil is forced into the reservoir. Finally, insert the retaining ring into the groove.

A photo of an air hose with air chuck next to a King shock reservoir and schrader valve

Step 22: Charge the Reservoir - Charge the reservoir using a nitrogen fill kit made up of a pressure regulator, connection hose, and an air chuck to the desired pressure (about 150 PSI) and then check for leaks. Sometimes this pressure will push the main seal out of the seal cap. If this happens, carefully push in back into position. The wiper cap will eventually hold it in place.

Assemble a nitrogen fill kit with these parts from Amazon.
Put together your own Nitrogen Fill Kit with a pressure regulator, connection hose, and an air chuck or no-loss air chuck. The only other item needed is a nitrogen tank that is available at any local welding supply shop.

Image of a Pressure Gegulator Image of a Connection Hose Image of an Air Chuck Image of a No Loss Air Chuck Image of a Pressure Gauge Image of an Air Chuck

As an Amazon Associate, we earn a small commission on purchases which does not affect your pricing.

A photo of a spanner wrench tightening the wiper cap on the King shock cylinder

Step 23: Screw on the Wiper Seal - Thread the wiper seal onto the now seated wiper cap and tighten securely using the spanner wrench. A few light taps with a dead blow hammer may help. Do not over tighten the wiper cap.

A photo of an allen wrench tightening the set screw in the King wiper cap

Step 24: Tighten the Set Screw - Tighten the set screw to secure the wiper cap. Wipe off any residual oil and cycle the shocks a few times by hand, it should move freely although with some resistance through the entire stroke. If you hear a lot of gurgling, then there is air in the cylinder and you will need to repeat steps 21-24. Trace amounts of air are ok as they will eventually move their way through the reservoir and past the internal floating piston.

This shock rebuild guide is ©Copyright - Please provide a link back to this page when copying.
Data is accurate to the best of our knowledge and is offered as-is with no guarantee.
